Waterproof Full Color LED Display Board High Brightness Pixel Pitch 6mm IP43

Product Categories
Melton optoelectronics co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

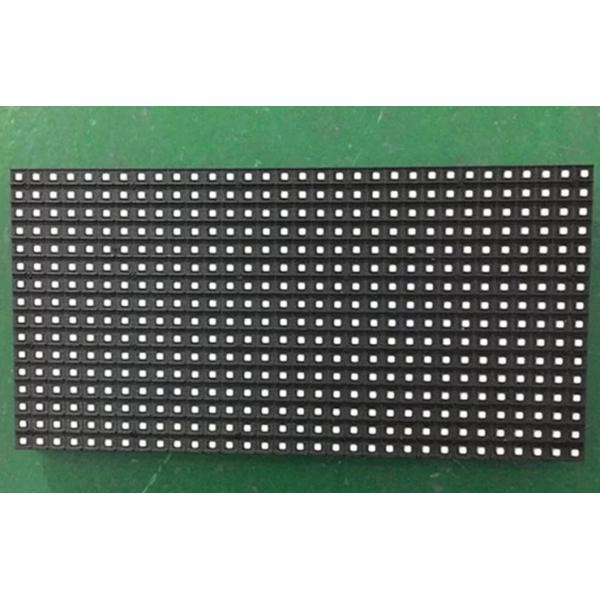

Waterproof Full Color LED Display Board High Brightness Pixel Pitch 6mm IP43

Brand Name : mled

Model Number : p6

Certification : CE, RoHS,FCC

Place of Origin : ShenZhen,china

MOQ : 1pc

Price : 11-15usd/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000pc per month

Delivery Time : 11-15days

Packaging Details : Veneer case / Flight case/ carton box

NAME : High Brightness P6 Watterproof Full Color LED Display Board

Model No. : Pixel Pitch 6mm

Pixel Configuration : 1R,1G,1B

Pixel Density : 10,000 dots / m²

Display Function : Video Display, Image & Text Display, Text Display, Market Display

Power Supply : MW

HS Code : 8528591090

IP Rating : IP43

Origin : china

Contact Now

Waterproof Full Color LED Display Board

Parameter

Unit Module Item Parameter
Model Number P6-8S
Module size 192mm*192mm
Pixel pitch 6mm
Pixels Density 27777点/m2
Pixel configuration 1R1G1B
Package mode SMD2727
Pixel resolution 32dots(W)*32 dots(H)
Max Power 26W
Module thickness 22mm
Weight 0.56kg
Drive type Constant drive
Scan mode 1/8scan
Port type hub75
Brightness of white balance ≥6000cd/m2

LED

Cabinet

 Dimension 576mm*576mm
Monomer Module Number 9
Power supply 5V60A 1pcs
Thermal discharge fan 1pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 6M～40M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35℃～+85℃working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 125mm

Power Working voltage AC220V±10%
Average Power consumption 280W/㎡
Max.Power consumption

≤680W/㎡
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768

Waterproof Full Color LED Display Board High Brightness Pixel Pitch 6mm IP43

Waterproof Full Color LED Display Board High Brightness Pixel Pitch 6mm IP43

About Us

Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi
Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen.
Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching,
soldering tin, gluing, aging and testing, have own patented technology.

Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated

MELTON is always focus on the competitive price, High quality and Best services to each customer, our core value is "Quality
Assurance, Lifetime Service" and guarantee to the customers: No Complaint
At the same time MELTON strives to benefit employee shareholders and business partners.
We balance the short-term and long-term benefits to realize sustained development.

For our Customer: Good price high quality products and 24hours services
For our Staff: Providing good sale environment and good welfare
For our Shareholder: Honest cooperation and double win.
For Society: Make the world bright make the earth green.
